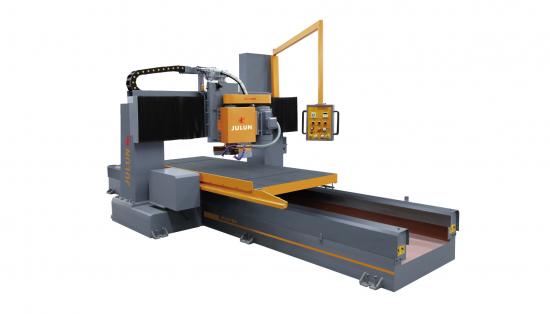

Block Base-plate Flat Cutting Machine
1:Uses jointed structure,trolley adopts frequency control, can adjust the feed rate according to the stone material and the feeding amount,with high cutting efficiency,high degree of automation,mainly applicable to cutting flat from the surface of the block base-plate,
2:can make full using of block base-plate, improve the utilization rate of stone resources, turn waste into treasure, bring more economic benefits.
Specification
Appellation
Unit
SPC-1300
Max.blade diameter
mm
Φ400-Φ600
Worktable size
mm
3000×1300
Range of processing height
mm
50~300
Water consumption
m3/h
3
Air consumption
kW
22
Total power
kW
25.5
Dimension(LXWXH)
mm
5850×2800×2400
Weight
kg
4300

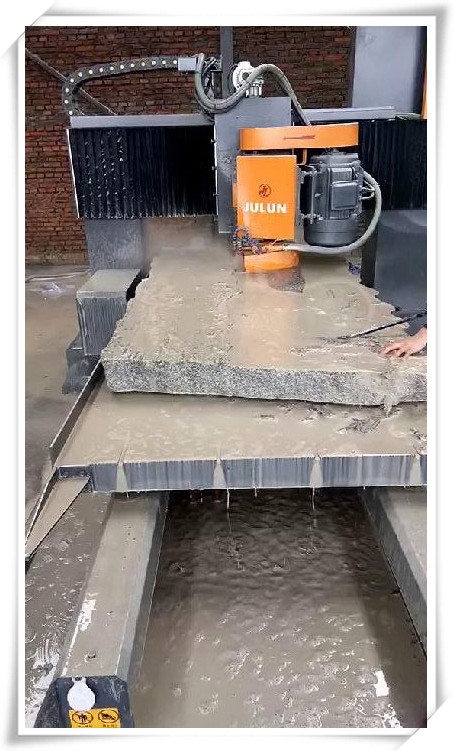

Photos
