Bridge Cutting Machine Guide Pillar Type

This stone slabs cutting machine is with high cutting speed ,high cutting precision,high stability ,easy operation.

item no.:
SQC-450/600/700-4D
product orgin:
China
brand:
Julun
shipping port:
Xiamen Port
payment:
TT, L/C at sight
MOQ:
1

inquiry now

products details

Bridge Cutting Machine Guide Pillar Type

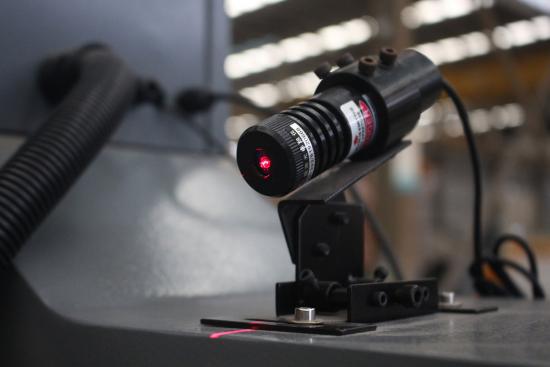

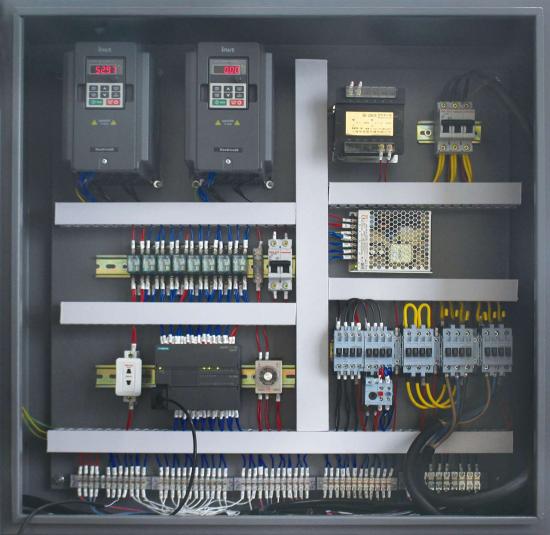

1.Laser cutting machine uses PLC system and Human-machine Interface , combined with Ultra-high precision rotary encoder to locate and infrared device

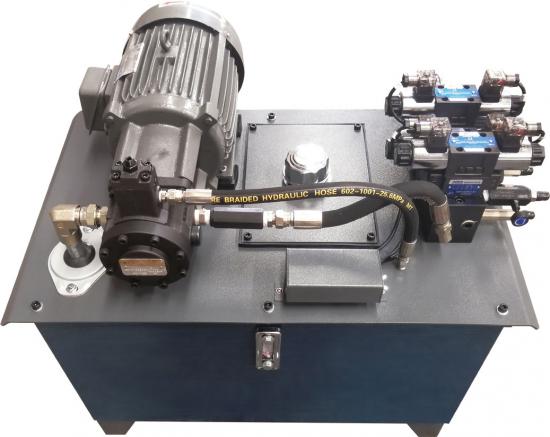

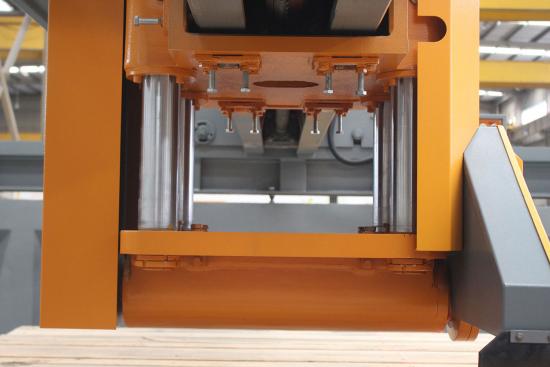

2.It uses inverter to control left-right feeding,adjusts the speed according to the stone material.It uses hydraulic lifting system , combination of Chrome-plated guide pin and wear guide bush,with small gap , wearable, beautiful structure , and Guide Sleeve with multi-layer seals , with waterproof , dustproof , anti-spill , improving the service life .

3.Main spare parts adopt imported good-quality materials .

Thus the whole machine is featured with high cutting efficiency , high cutting precision , high stability , easy –operating to suit granite and marble with high value and big size.

Specification

Appellation	Unit	SQC-450-4D	SQC-600-4D	SQC-700-4D
Max.blade diameter	mm	Φ450	Φ600	Φ700
Max.lifting stroke	mm	220	350	470
Worktable size	mm	3200×2000
Worktable rotation range(optional)	°	0°- 90°/0°- 360°（Set up by each 45 degree)
Worktable turn-over degree	°	0°- 85°
Max.rocessing height	mm	100	180	220
Water consumption	m³/h	3
Power of main motor(optional)	kw	15	18.5	18.5
Total power	kw	21	24	24
Dimension(L×W×H)	mm	6000×4800 ×3100	6000x480 0x3300	6000x4800 x3400
Weight	kg	5600 (with cement base 10200kg )	5800 (with cement base 10500kg )	6000 (with cement base 10800kg )
