CNC Stone Cutting Machine For Sale
1. CNC marble granite cutting machine'system was developed with Italy company,uses industrial flat computer,resistance type 15 Inch embedded touch screen Human-interface industrial one machine support installation with Windows XP system,has good opening,compact structure,high integration and convenient operation and maintenance;
2.The cross-beam and side-beam use liner rails,driven by servo motor,built-in high precision rotation encoder,can adjust the speed and position according to the stone materials,with high precision;with steel stand to easy installation and make sure the machine using efficiency;Lifting system uses hydraulic lifting system,main parts adopt imported good-quality materials.
3.Thus the whole machine is featured with high cutting efficiency,high cutting precision,high stability,easy-operating to suit granite and marble with high value and big size,and special-shaped cutting.
Specification
|
Appellation |
Unit |
CNC600-5 |
|
Max.blade diameter |
mm |
Φ600 |
|
Max.processing length |
mm |
500 |
|
Left-right movement stroke(X axis) |
mm |
3260 |
|
Forward-backward movement stroke(Y axis) |
mm |
2080 |
|
Max.lifting stroke(Z axis) |
mm |
420 |
|
Blade rotation(C axis) |
° |
0°-360° |
|
Blade rotation(A axis) |
° |
0°-90° |
|
Worktable size |
Mm |
3200×2000 |
|
Worktable turn-over degree |
° |
0°-85° |
|
Water consumption |
m3/h |
2 |
|
Power of main motor |
kw | 15 |
| Total power | kw | 22 |
|
Dimension(L*W*H) |
mm | 5700*3300*3250 |
| Weight | kg | 5500 |

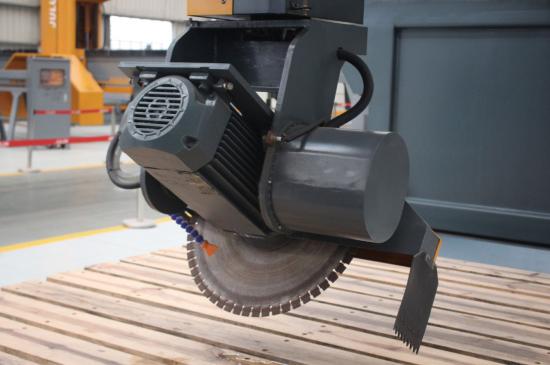

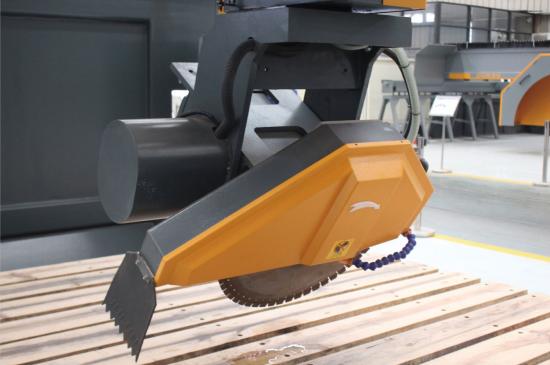

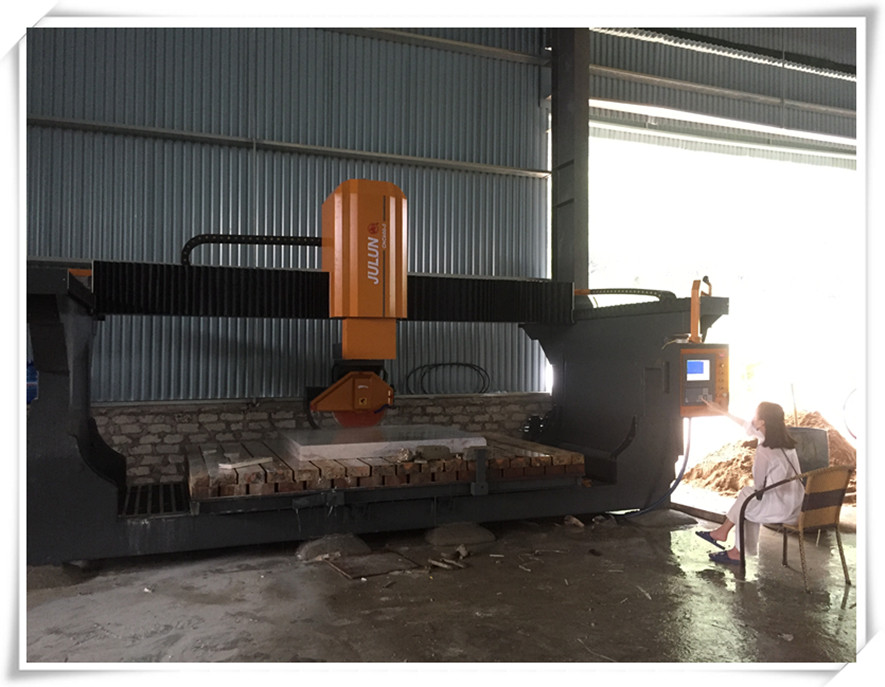

Photos
 |
 |
