45° Tiltable Bridge Cutting Machine
1.Head rotation stone cutting machine uses PLC system and Human-machine Interface , combined with Ultra-high precision rotary encoder to locate and infrared device ,
2.It uses inverter to control left –right feeding , adjusts the speed according to the stone material .
3.It uses hydraulic lifting system , main spare parts adopt imported good –quality materials , the head can rotate 0-50°, applied in a wider range .
Thus the whole machine is featured as high cutting efficiency , high cutting precision , high stability , easy-operating to suit granite and marble with high value and big size , and shaped stone products.
Specification
|
Appellation |
Unit |
SQC-700X |
|
Max.blade diameter |
mm |
Φ700 |
|
Max.lifting stroke |
mm |
470 |
|
Worktable size |
mm |
3200×2000 |
|
Blade tilt range |
° |
0°- 45° |
|
Worktable rotation range(optional) |
° |
0°- 90°/0°- 360° （Set up by each 45 degree) |
|
Worktable turn-over degree |
° |
85° |
|
Water consumption |
m³/h |
3 |
|
Power of main motor |
kw |
18.5 |
|
Total power |
kw |
25 |
|
Dimension(L×W×H) |
mm |
6000×5700×3600 |
|
Weight |
kg |
6400（with steel stand 7500kg ） |

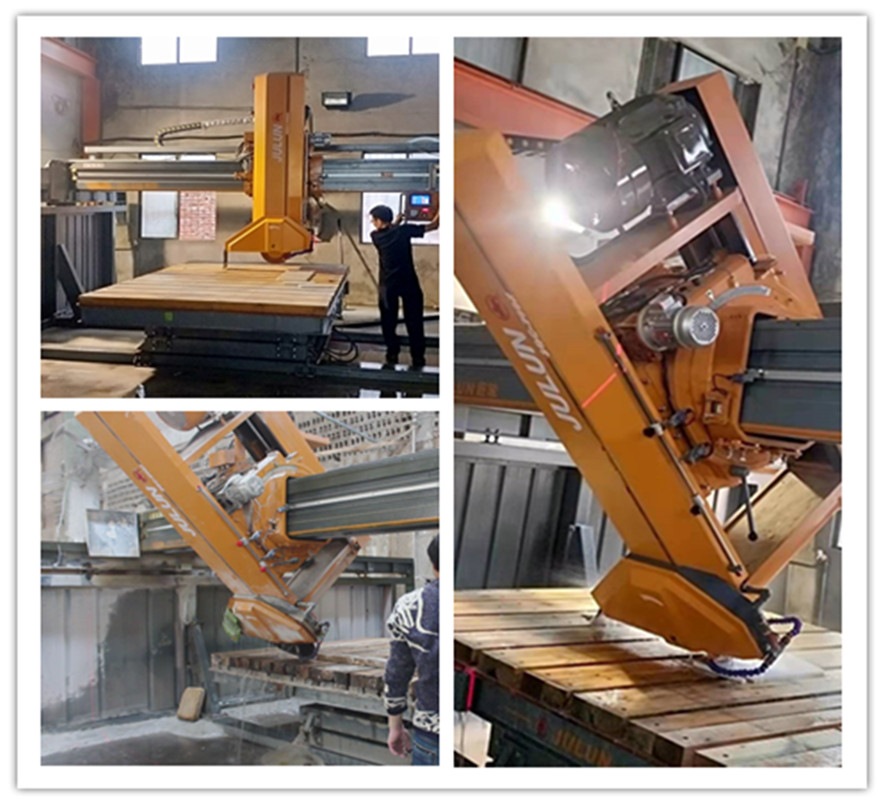

Photos
