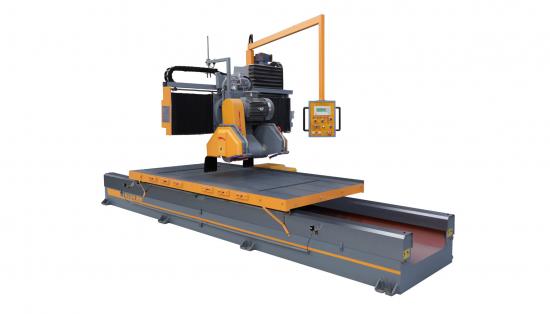

Automatic Special Shapes Profiling Cutting Machine

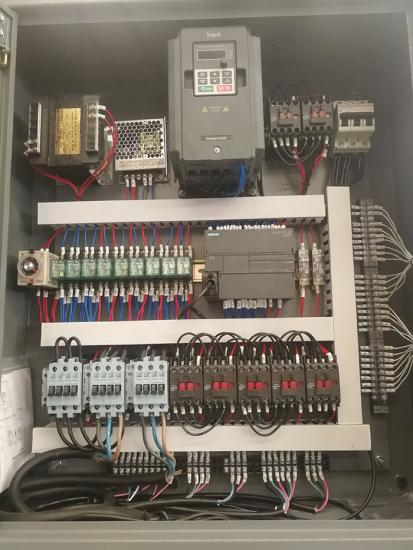

1:Automatically tracks model of curve(straight) line through the fiber optic probe,automatically profiles through diamond circular saws to cut stone with curve(straight) line and craft products,uses inverter to control up-down rising and left-right feeding ,adjusts the speed according to the stone material.If choosing rotating worktable,

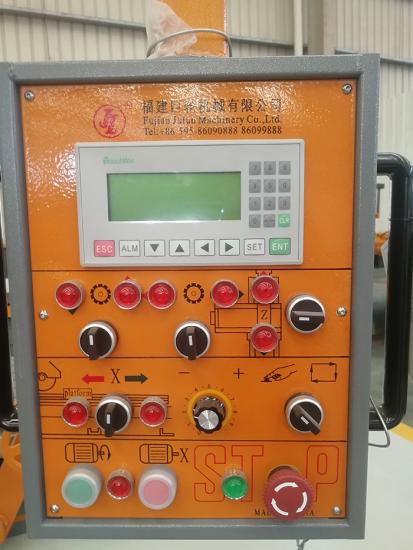

2:The processing of arc-shaped lines can be done.This machine adopts PLC system,high degree of automation,high precision cutting;using double-blades designing,with high cutting efficiency,high stability,easy-operation to suit for lines,arc-shaped lines,Roman column,etc.
Note:Could choose CNC system, replacing the trouble of making a model, cutting effect more automatically and accurately.
Specification
Appellation
Unit
SQ/PC-1300
Max.blade diameter
mm
Φ600
Worktable size
mm
3000×1300
Cutter processing range
mm
3000×1300×400
Water consumption
m3/h
6
Air consumption
kW
15
Total power
kW
18.5
Dimension(LXWXH)
mm
5300×2300×2700
Weight
kg
4300

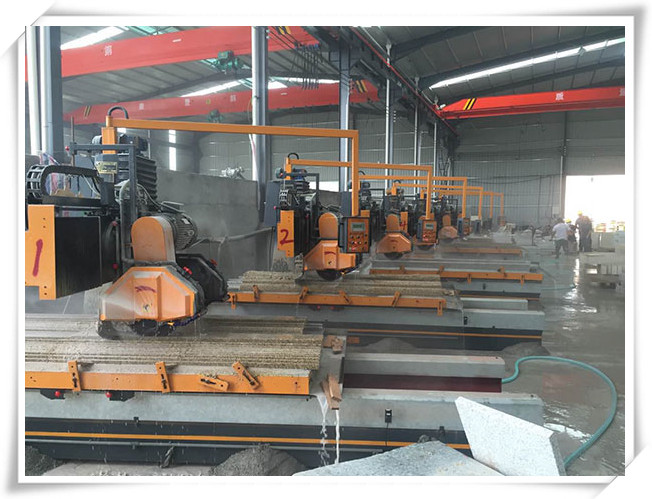

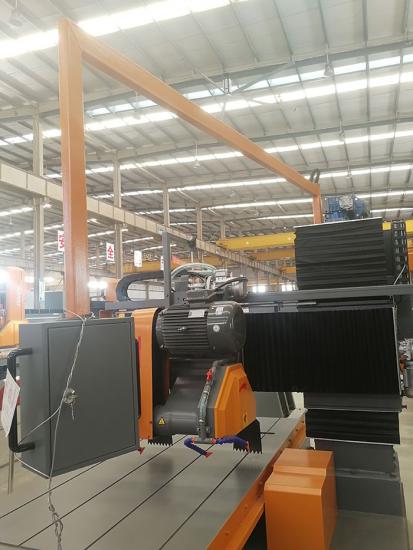

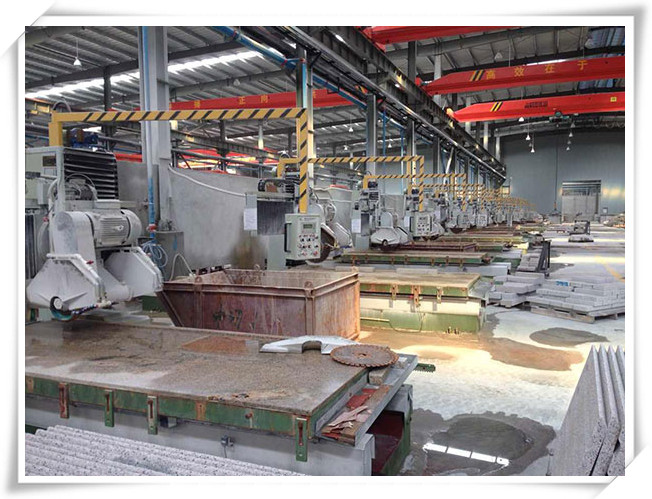

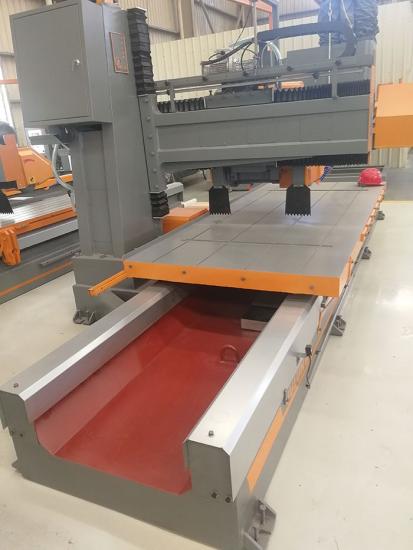

Photos
