Middle Block Cutting Machine
1.stone cutting machine price uses PLC system and Human-machine interface, combined with Ultra-high precision rotary encoder to locate, and infrared device.
2.it uses inverter to control left-right feeding, adjust the speed according to the stone material.
3.It uses hydraulic lifting system, and main spare parts adopt imported good-quality materials.
Thus the whole machine is featured as high cutting efficiency, high stability, easy-operating to suit specially shaped stone products, tombstone and curb stone.
Specification
Appellation
unit
SQC/PC-1200
Max.blade diameter
mm
Φ1200
Max.lifting stroke
mm
760
Worktable size
mm
3000×2000
Worktable rotation range(optional)
°
0°,90°/ 0°-360° （Set up by each 45 degree)
Water consumption
m³/h
4
Power of main motor
kw
22
Total power
kw
27
Dimension(L×W×H)
mm
6400×4800×4400
Weight
kg
6800（Including cement base 13000kg)

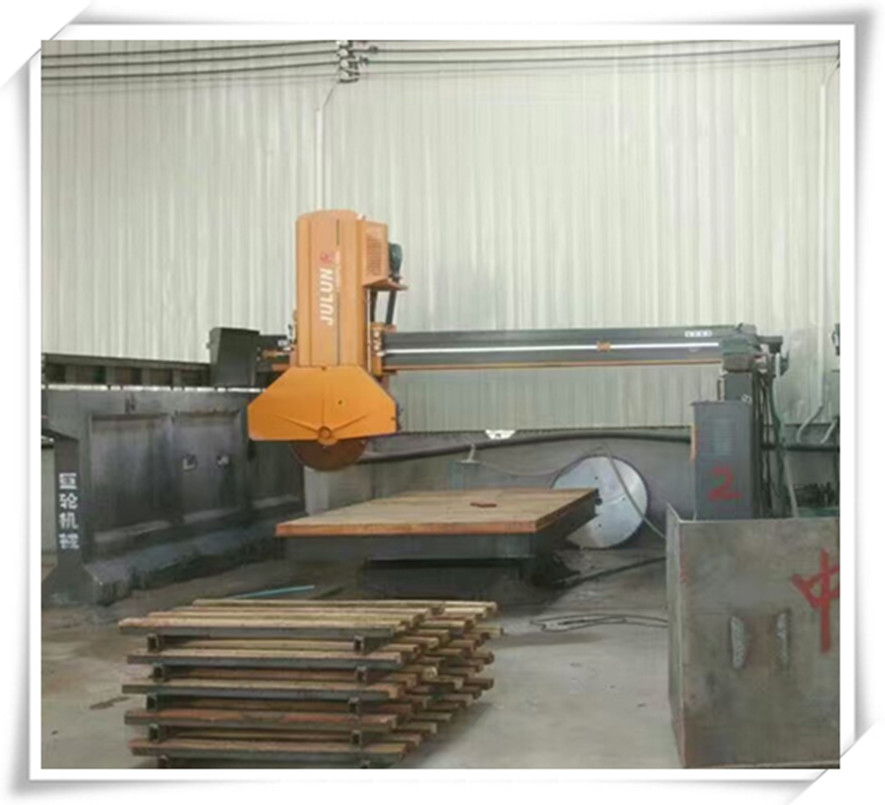

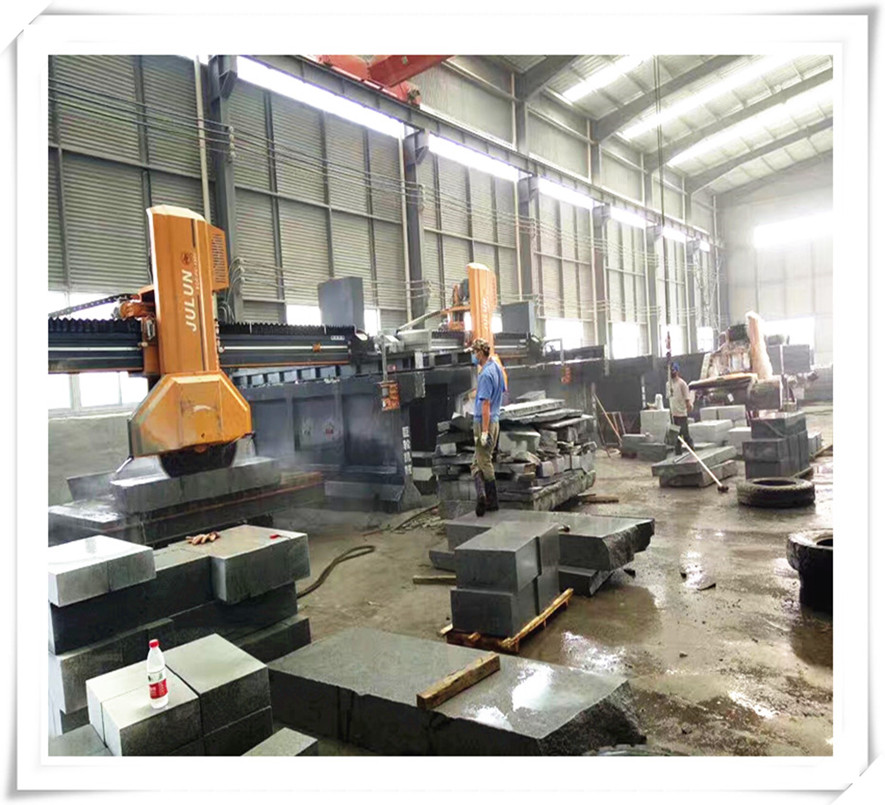

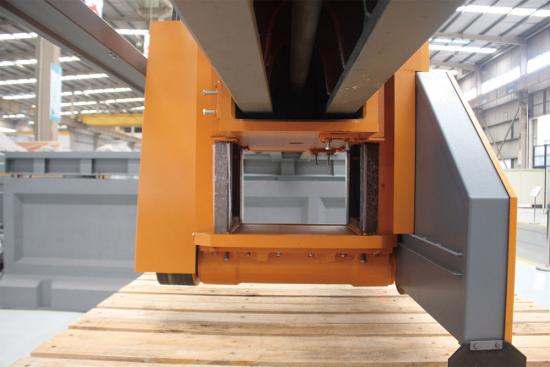

Photos
