Manual Edge Cutting Machine
1:Uses jointed structure;the main head can rotate 180 degree and be electrically moving up and down.
2:The whole machine has compact structure,fine appearance,stable functions and high processing precision, which suits for edge cutting and milling of small slates ,lath and thick tiles.
Specification
|
Appellation |
Unit |
SQA-600 |
|
Max.blade diameter |
mm |
Φ600 |
|
Max.lifting stroke |
mm |
350 |
|
Worktable size |
mm |
3000×750 |
|
Max.processing size |
mm |
2700×1200 |
|
Water consumption |
m3/h |
3 |
|
Air consumption |
kW |
15 |
|
Total power |
kW |
16/20 |
|
Dimension(LXWXH) |
mm |
5500×2200×2250 |
|
Weight |
kg |
2800 |

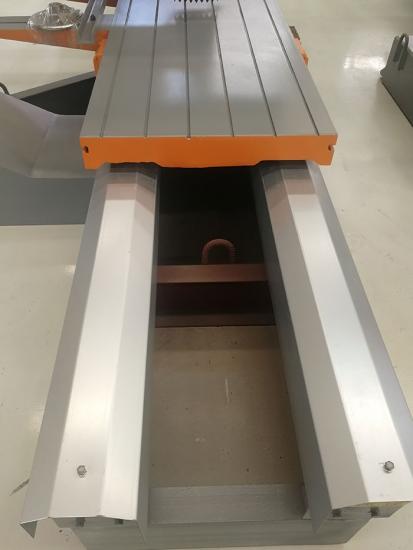

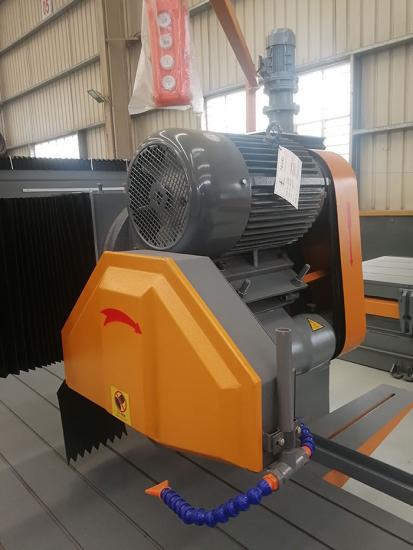

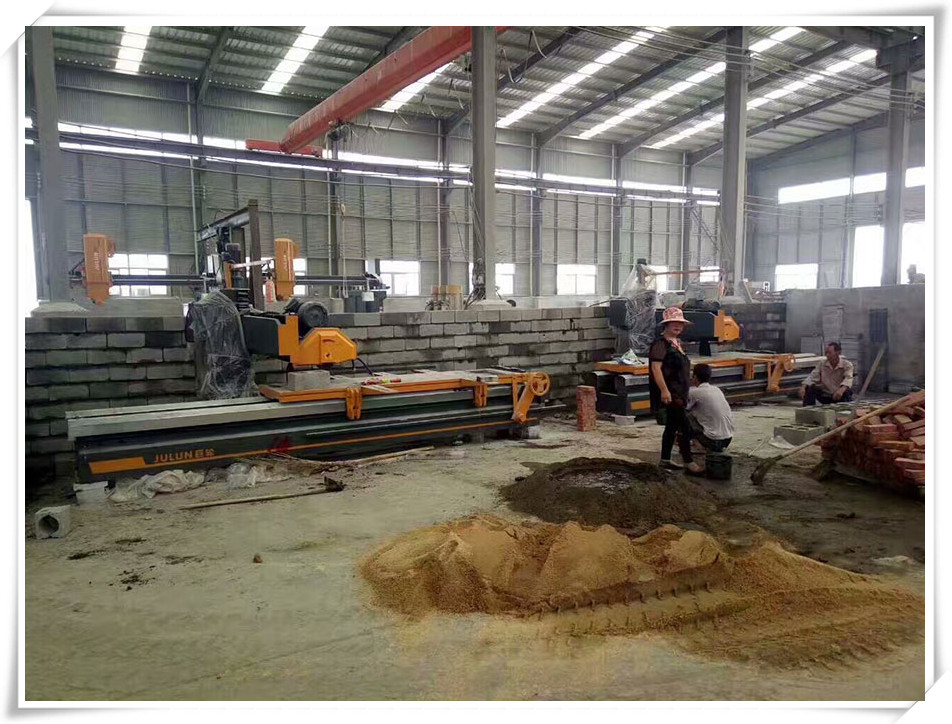

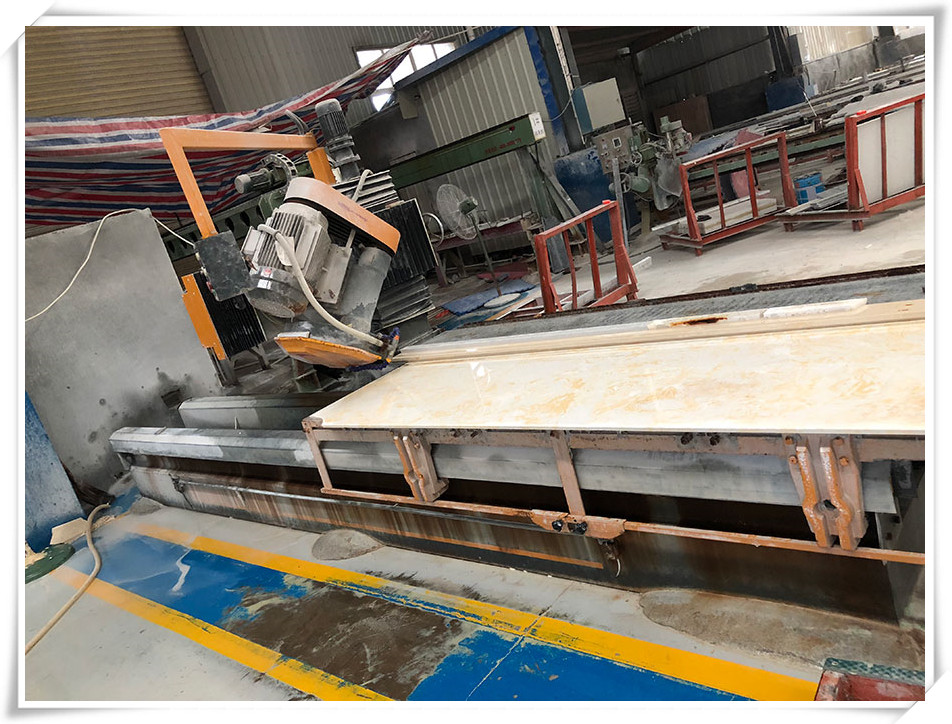

Photos
