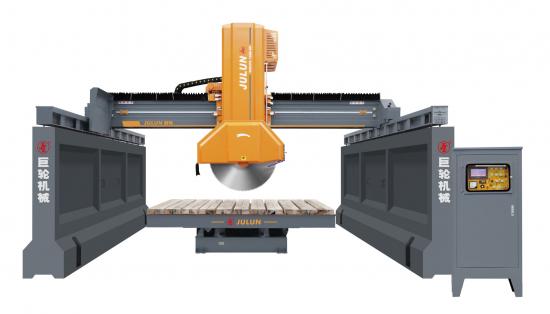

Bridge Cutting Machine Slide Type

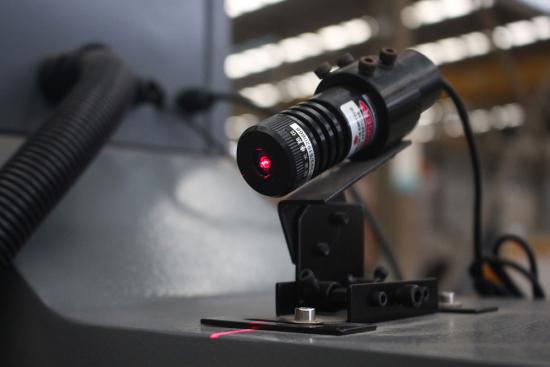

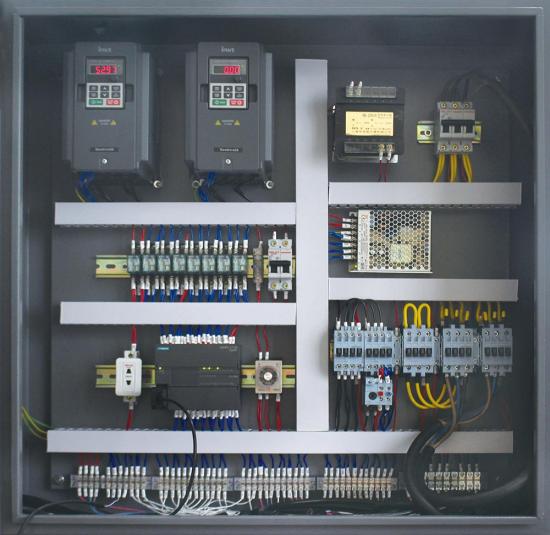

1.It uses PLC system and human-machine Interface, combined with Ultra-high precision rotary encoder to locate and infrared device
2.It uses inverter to control left-right feeding, adjusts the speed according to the stone material.

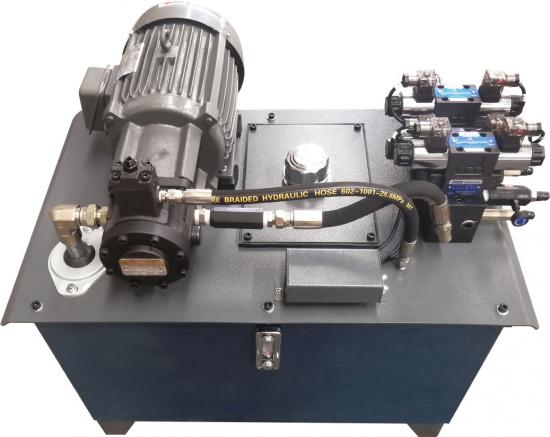

3.It uses hydraulic lifting system,main spare parts adopt imported good-quality materials.
Thus the whole machine is featured as high cutting efficiency,high cutting precision, high stability,easy-operating to suit granite and marble with high value and big size.
Specification
|
Appellation |
Unit |
SQC-450 |
SQC-600 |
SQC-700 |
|
Max.blade diameter |
mm |
Φ450 |
Φ600 |
Φ700 |
|
Max.lifting stroke |
mm |
220 |
350 |
470 |
|
Worktable size |
mm |
3200×2000 |
||
|
Worktable rotation range(optional) |
° |
0°- 90°/0°- 360° (set up by each 45°） |
||
|
Worktable turn-over degree |
° |
0°- 85° |
||
|
Max.rocessing height |
mm |
100 |
180 |
220 |
|
Water consumption |
m³/h |
3 |
||
|
Power of main motor(optional) |
kw |
15 |
18.5 |
18.5 |
|
Total power |
kw |
21 |
24 |
24 |
|
Dimension(L×W×H) |
mm |
6000×4800 |
6000x480 0x3300 |
6000x4800 |
|
Weight |
kg |
5400 (with cement base 10000kg ) |
5600 (with cement base 10200kg ) |
5800 (with cement base 10500kg ) |

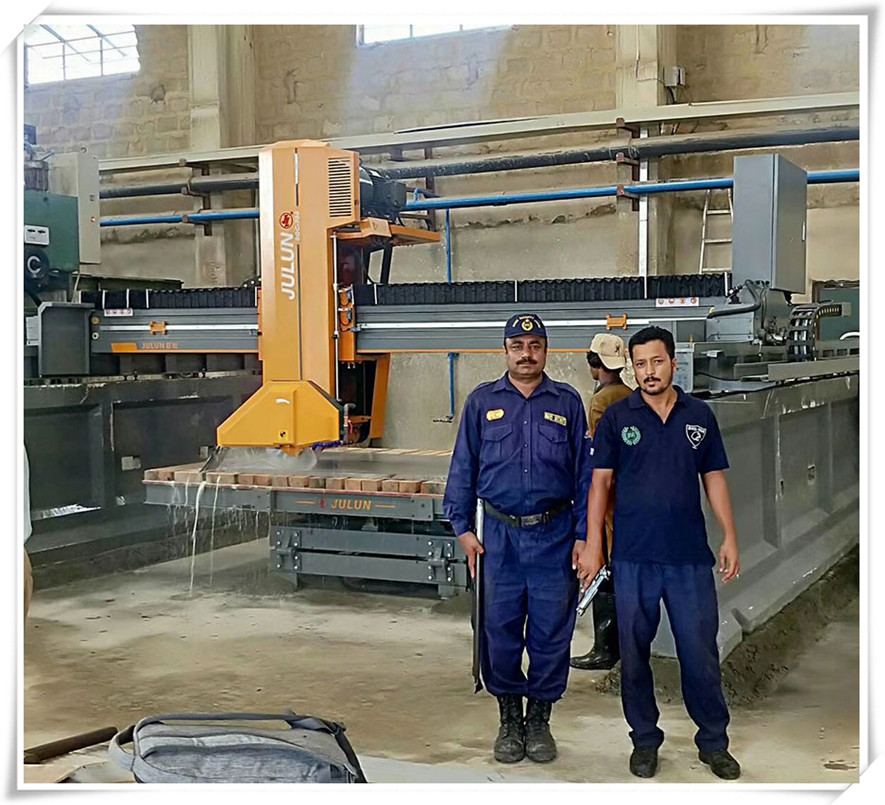

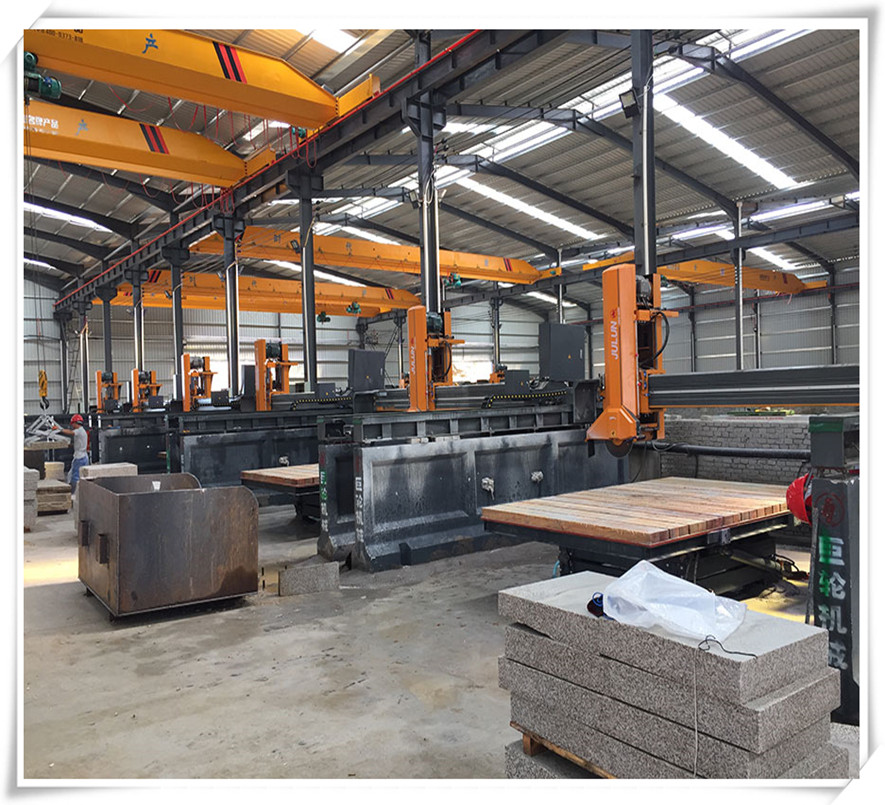

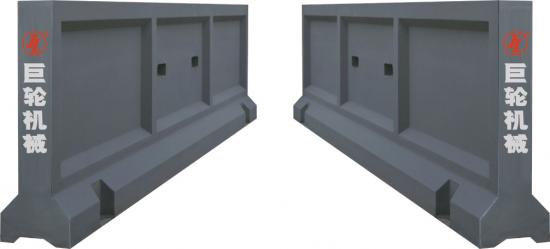

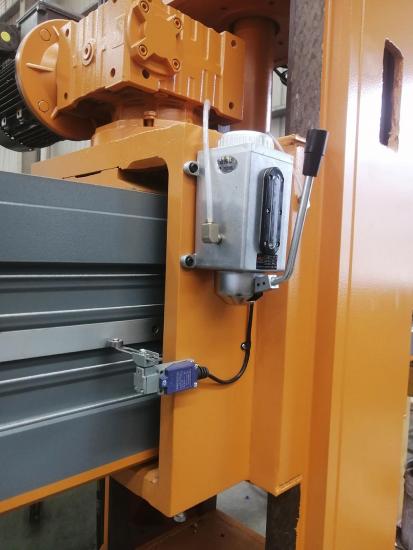

Photos
