Gantry Automatic Calibrating Machine
1: This machine for large-slate uses Plano-jointed structure,strong structural rigidity,the grinding head can move up and down neatly and feed automatically.
2: With stable functions,high processing precision,convenient operating,and adopting Japanese Mitsubishi frequency converter,whic make whole machine good working and become the best choice for operating thickness and smooth.
Specification
|
Appellation |
Unit |
SXA-100L |
|
|
Grinding head diameter |
mm |
Φ1080 |
Φ1350 |
|
Grinding head lifting stroke |
mm |
100 |
|
|
Worktable size(optional) |
mm |
2500X1100/3000X1100 |
2500X1250/3000X1250 |
|
Water consumption |
m3/h |
7.2 |
|
|
Air consumption |
kW |
18.5 |
22 |
|
Total power |
kW |
20.3 |
23.8 |
|
Dimension(LXWXH) |
mm |
6000X2200X2050 6700X2200X2050 |
6800X2350X2150 7400X2350X2150 |
|
Weight |
kg |
3400 |
4100 |

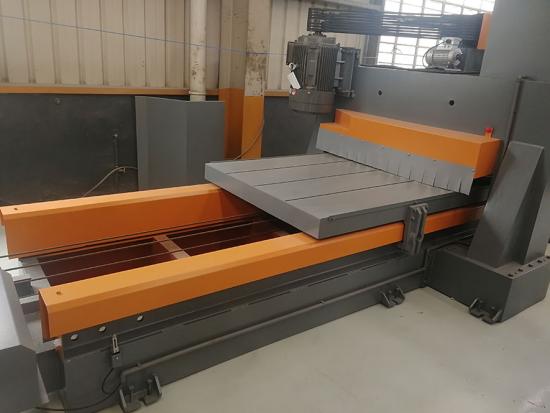

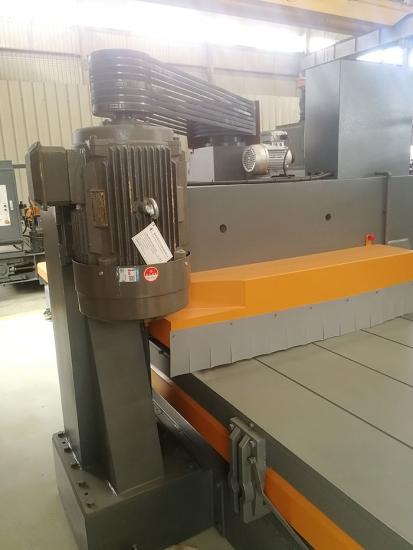

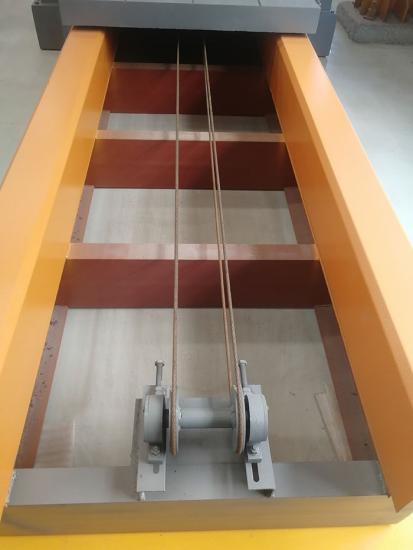

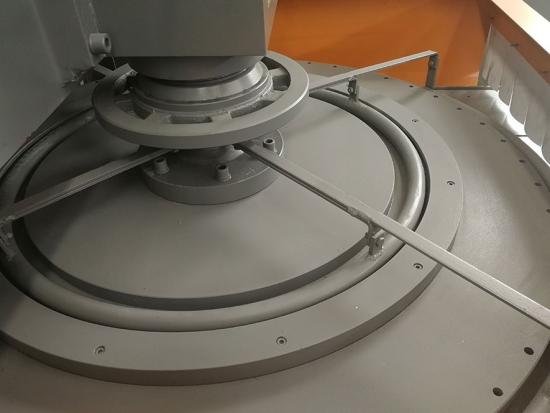

Photos
