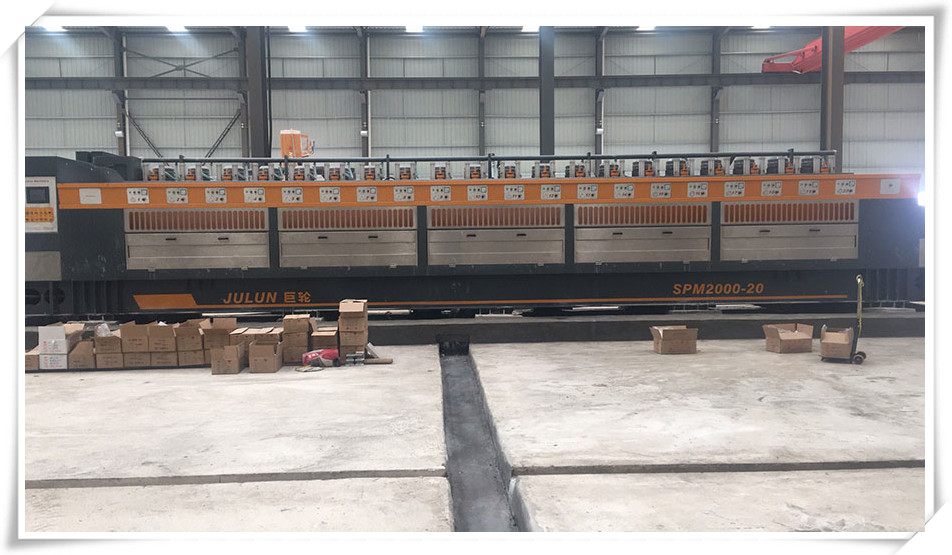

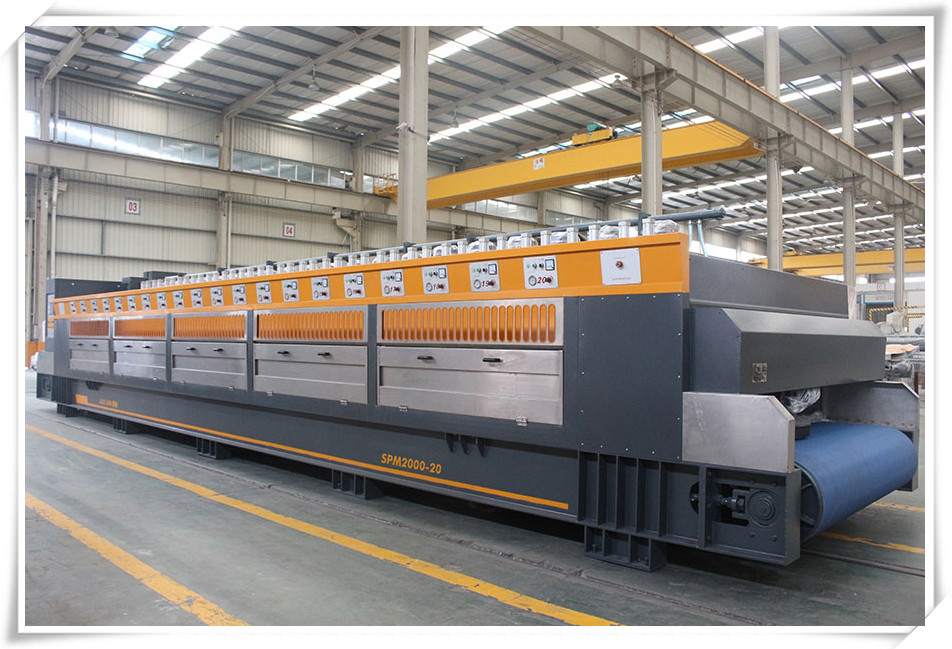

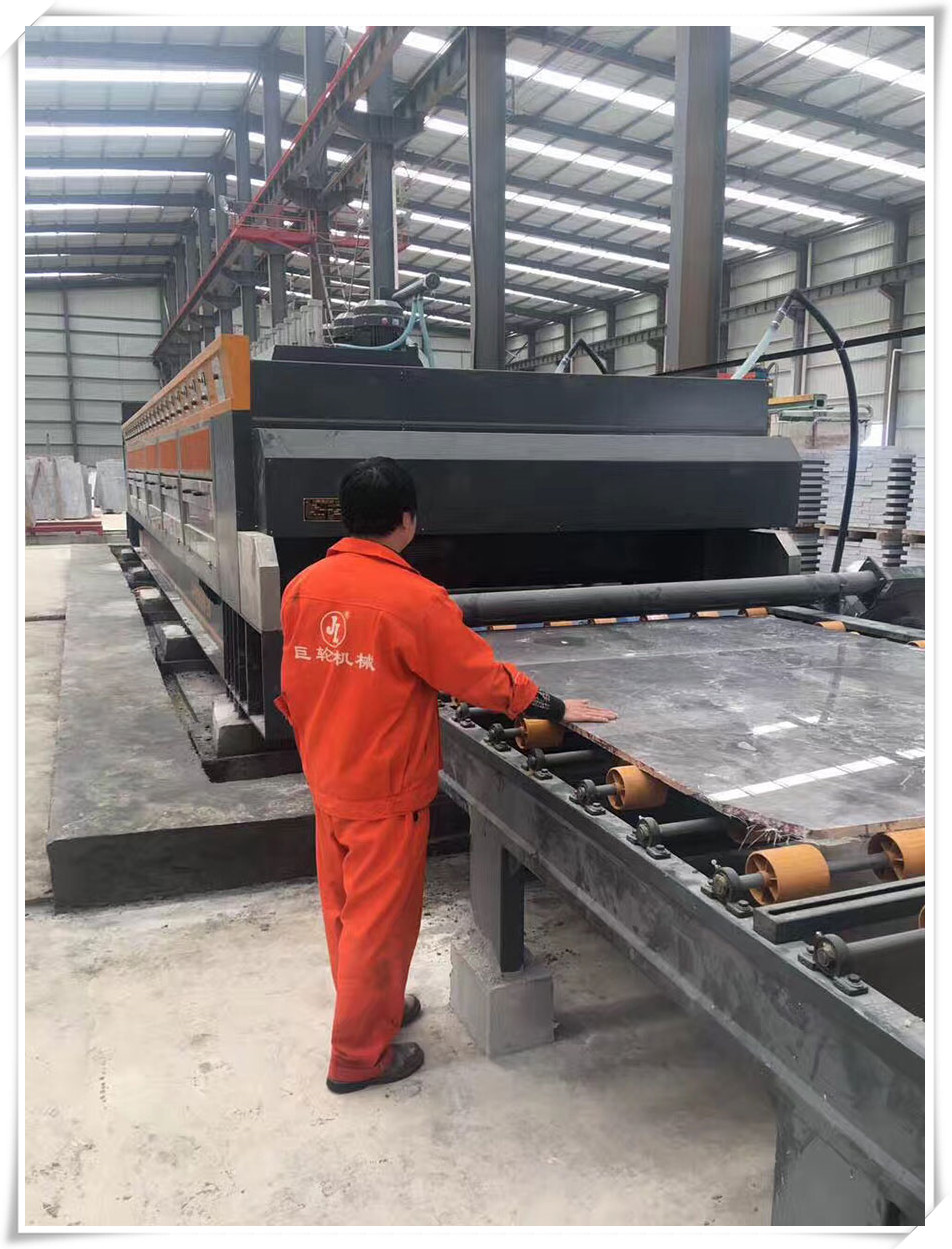

Marble Line Polishing Machine
1.This machine polished the surface for polishing marble slabs.
2.Using the PLC system and liquid crystal display screen menu, offering intelligent control.
3.Establishing Auto-dodging function and shape-memory function, equipping with an alarming advice of the abrasive consumption, having high automation operation and low labor strength.
4.Allocation the flexibility polishing heads for granite, prominent improvement on the polishing efficiency and polishing quality, and greatly reduced abrasive consumption.
5.Using the most advanced high-quality construction, rational structure, high stability and efficiency, and energy saving operation.

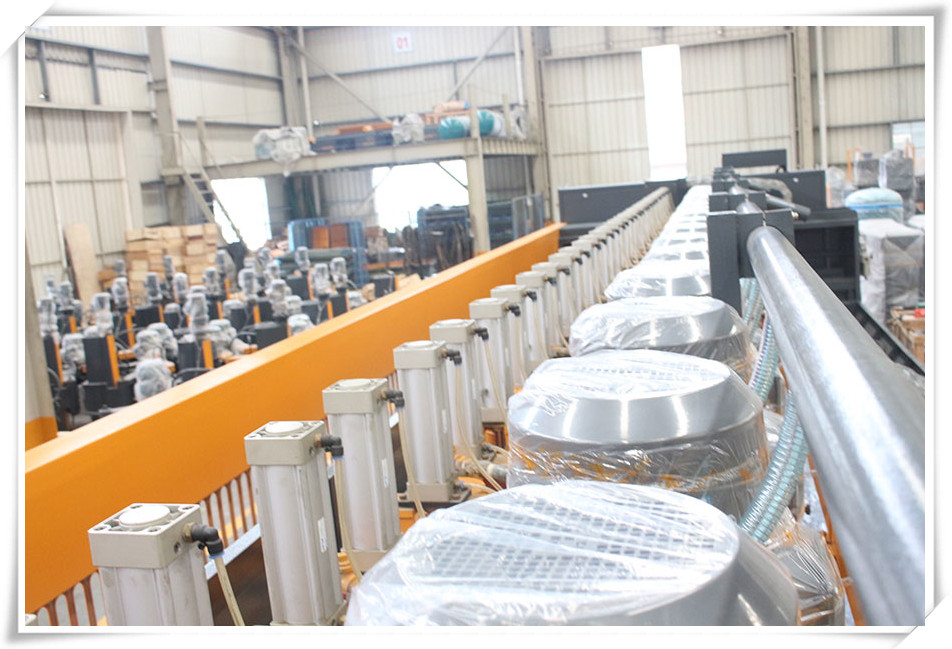

6.The polishing heads, the upper head assemblies, and the key bearings all have central automatic lubrication systems.
7.The power movement of polishing heads uses the narrow V belt with teeth set, to improve slab flatness, reduce movement consumption and enhance the longer service life.
Specification
Appelation
Unit
SPM series
Max.processing width(optonal)
mm
1000~2000
Max.processing height
mm
60
Belt advanced speed
m/min
0~3
Number of grinding head(optional)
pcs
16/20
Water consumption
m3/h
32/40
Air consumption
m3/h
16/20
Power of main motor
kw
15
Total power
kw
250/310
Dimensions(L×W×H)
mm
12200×3100×3000
Weight
T
21~32
