Lichi Surface Processing Polishing Machine

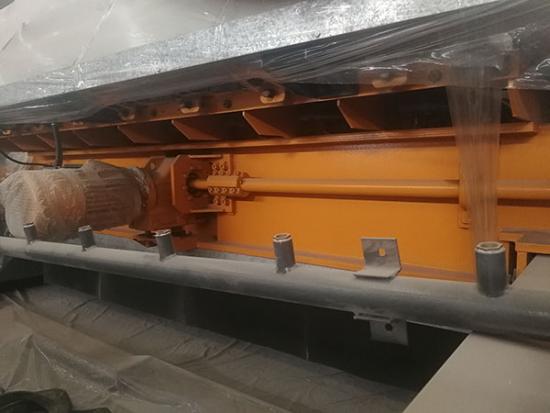

1: The front and rear swinging of the machine beam is driven by motor and parallel shaft reducer, guided with the oil-immersed linear guide, good lubrication effect, small running resistance , and the energy consumption is reduced.
2: Drived with high-precision double-cylinder, makes the lifting movement more stable. It adopts new spindle box structure, main parts adpot the high-quality materials.
3:The Sealing device which is designed especially for the harsh stone processing environment,is with waterproof, dustproof and oil-proof; therefore, it has the advantages of high stability and long service life.
Specification
|
Appellation |
Unit |
SPR-1300-6C/8C/10C |
|
Max.processing width |
mm |
1250 |
|
Max.processing height |
mm |
50 |
|
Belt advanced speed |
m/min |
0-3 |
|
Number of grinding head(optional) |
pcs |
6/8/10 |
|
Water consumption |
m3/h |
6.5/9/11 |
|
Water consumption |
m³/h |
7.2/9.5/12 |
|
Air consumption |
kw |
5.5 |
|
Total power |
kW |
59/70/81 |
|
Dimension(LXWXH) |
mm |
4980×2260×2100/5620×2260×2100/6260×2260×2100 |
|
Weight |
kg |
7500/9500/11500 |
