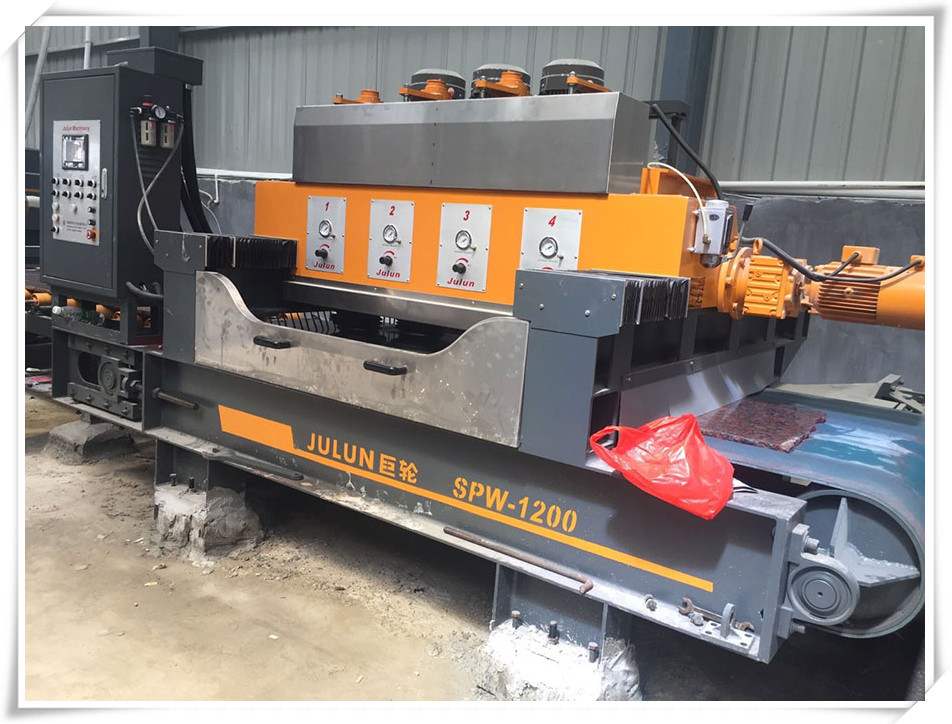

Automatic Waxing Polishing Machine

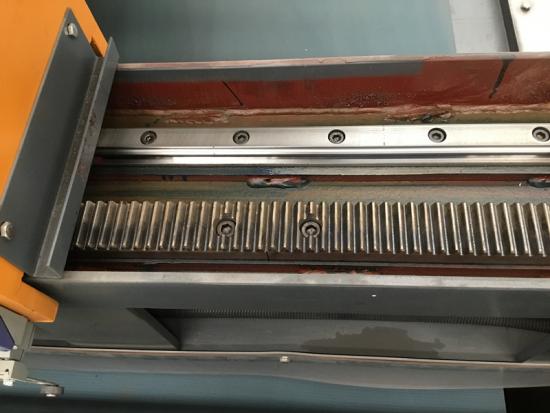

1. It adopts parallel axis reducer to drive the crossbeam swing forward and backward. The oil immersed linear guide is well lubrication,lower running resistance and lower energy consumption.
2. The up and down movement uses new spindle box structure, which is more stable for lifting up and down.The main spare parts use high quality materials ,especially the seal device for severe environment of stone industry.
3. The design of waterproof,dustproof and leakproof enhances the machine service life. The whole machine is featured as compacted structure,easy operation and efficient waxing performance.
Specification
Appellation
Unit
SPW-1300
Max.processing width
mm
1250
Max.processing height
mm
50
Belt advanced speed
m/min
0~3.5
Number of grinding head(optional)
pcs
4
Water consumption
m³/h
30
Air consumption
m³/h
4.5
Power of main motor
kw
7.5
Total power
kw
27
Dimension(L×W×H)
mm
3780×2920×1860
Weight
kg
5500
 |
 |
